Insulation-Displacement Wire Connector, 16 AWG Max, 2 Port, Red, Polypropylene Insulation, 1, 000 V MPN:557

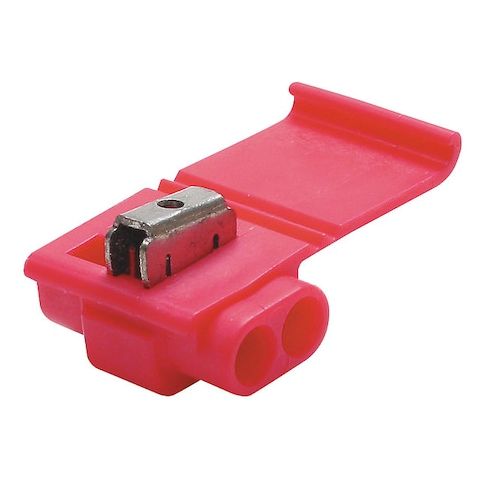

Insulation-Displacement Wire Connector, 16 AWG Max, 2 Port, Red, Polypropylene Insulation, 1, 000 V
The 3M Insulation-Displacement Wire Connector is a reliable and efficient solution for a wide range of electrical applications. With a maximum voltage rating of 1,000 V and a maximum temperature rating of 221°F, this connector is suitable for use in various industries, including industrial, commercial, and residential settings. Its polypropylene insulation and brass contacts ensure a secure connection, while its compact design makes it easy to install in tight spaces. Ideal for applications such as wiring harnesses, circuit boards, and control systems, this connector provides a reliable and long-lasting connection, reducing the risk of electrical errors and downtime.
Top product features:
- Insulation Displacement Connector technology allows for quick and easy wire connection by displacing insulation without stripping wire.
- The connector has a double U-element design that provides a secure connection between two wires.
- The connector is rated for 1,000 V, allowing for safe and reliable connections in high-voltage applications.
Top product applications:
- Wire harness assembly
- Automotive wiring systems
- Control panel wiring installations
Insulation Displacement Connector, Color Red, Connector Type Double U-Element, Insulation Material Polypropylene, Maximum Insulation Diameter 0.12 in, Maximum Temperature 221 Degrees F, Maximum Run Wire Insulation Diameter 0.12 in, Minimum Run Wire Size 22 AWG, Maximum Run Wire Size 16 AWG, Maximum Tap Wire Insulation Diameter 0.12 in, Minimum Tap Wire Size 22 AWG, Maximum Tap Wire Size 16 AWG, Maximum Voltage 1,000 V, Number of Ports 2, Contact Finish Tin, Contact Material Brass
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 3.40
- Package Width: 3.40
- Package Height: 3.60
- Package Weight: 0.30
Product info last updated on January 13, 2026 12:52pm UTC
Category: Electrical Connectors
