Insulation-Displacement Wire Connector, 16 AWG Max, 2 Port, Blue, Polypropylene Insulation, 1, 000 V MPN:560B BOX
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1868273
Insulation-Displacement Wire Connector, 16 AWG Max, 2 Port, Blue, Polypropylene Insulation, 1, 000 V

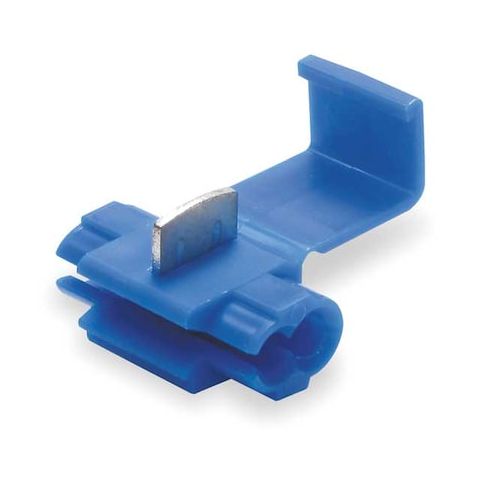

Easily connect and terminate wires with the 3M Insulation-Displacement Wire Connector. This reliable and efficient connector is designed for use in a variety of applications, including electrical panels, control panels, and telecommunications equipment. With a maximum operating temperature of 221°F and a voltage rating of 1,000V, this connector is suitable for use in demanding environments. Its polypropylene insulation and single U-element design ensure a secure and reliable connection, while its small size and lightweight design make it easy to install and manage. Perfect for use in commercial and industrial settings, this connector is a must-have for any electrical professional.
Top product features:
- Insulation Displacement Connector allows for easy wire connection without stripping or cutting the insulation.
- Polypropylene insulation provides a durable and long-lasting electrical connection.
- The connector can handle a maximum operating temperature of 221 Degrees F, enabling reliable performance in a variety of applications.
Top product applications:
- Wire harness assembly
- Automotive electrical wiring
- Electrical panel construction
Insulation Displacement Connector, Color Blue, Connector Type Single U-Element, Insulation Material Polypropylene, Maximum Insulation Diameter 0.145 in, Maximum Operating Temperature 221 Degrees F, Maximum Run Conductors 2, Maximum Run Wire Insulation Diameter 0.145 in, Minimum Run Wire Size 18 AWG, Maximum Run Wire Size 16 AWG, Maximum Tap Conductors 2, Maximum Tap Wire Insulation Diameter 0.145 in, Minimum Tap Wire Size 22 AWG, Maximum Tap Wire Size 14 AWG, Maximum Voltage 1,000 V
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 3.40
- Package Width: 3.40
- Package Height: 3.80
- Package Weight: 0.35
Product info last updated on February 1, 2026 4:55pm UTC
Category: Electrical Connectors
