Scotchlok Female Flag Discon, Bare, 16-14AWG, PK100 MPN:MU14-250DF/FLAGX
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0533197

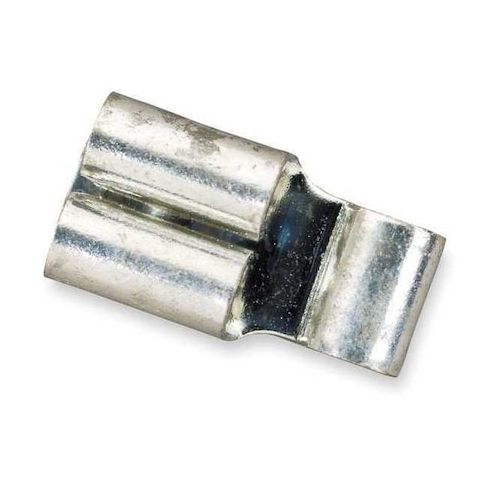

Scotchlok Female Flag Discon, Bare, 16-14AWG, PK100
The Scotchlok Female Flag Disconnect is a reliable and versatile electrical connector ideal for a variety of applications, including industrial, commercial, and residential wiring. With a maximum operating temperature of 347°F and a maximum voltage of 600V, it can withstand harsh environments and ensure safe and efficient electrical connections. The brass contact material and bare insulation provide excellent conductivity and durability, while the crimp termination style and butted seam design ensure a secure and long-lasting connection. Suitable for use with 16-14 AWG wires, this connector is an essential component for any electrical project, from simple repairs to complex installations.
Top product features:
- Female Flag Disconnect provides a 90-degree connection point for wires.
- Crimping termination style allows for secure and reliable connections.
- Maximum operating temperature of 347 Degrees F enables use in high-temperature applications.
Top product applications:
- Automotive Electrical Systems
- Electrical Panel Building
- Industrial Machinery Wiring
Female Flag Disconnect, Contact Material Brass, Insulation Color Bare, Insulation Coverage None, Maximum Operating Temperature 347 Degrees F, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type 90 Degrees Female Disconnect, Termination Style Crimp, Seam Style Butted, Standards CSA Certified, RoHS Compliant, UL Listed, Barrel Inside Diameter 0.095 in, Insulation Type Non-Insulated, Overall Length 0.63 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 2.00
- Package Width: 1.60
- Package Height: 2.80
- Package Weight: 0.18
